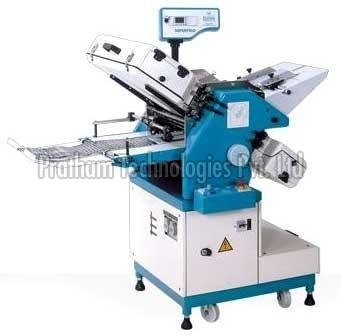

Friction Feed Folding Machine (PGV-FF415)


Friction Feed Folding Machine (PGV-FF415)

Friction Feed Folding Machine (PGV-FF415) is fitted with a high-speed friction feeder enabling it to handle a wide range of paper with ease and efficiency. The friction feeder of Friction Feed Folding Machine feeds a single paper at a time and paper settings are easy to understand.


Advantages

  • Basic four parallel folds' machine
  • Combination of four folding pockets and three deflectors
  • Maximum four folds are available
  • Single, double or triple folds
  • Different styles such as accordion fold,  fold, double parallel fold, uneven folds etc.
  • Suitable for non coating jobs
  • Feeds a single paper at a time
  • Setting of paper is easy to understand
  • Rotary scoring (creasing) attachment
  • Belt drive coupled with thick end plates ensures smooth and low noise working
  • Caliper setting and jogging mode available
  • Compatible with optional vertical stacker
  • Ergonomic design
  • User friendly operating panel
  • Emergency stop
  • Optional noise reduction hoods and
  • Paper Jam Detection feature



Specifications :

Max. Format 375 x 600 mm Min. Format 70 x 110 mm Min. Folding 18 mm Output 19000 sheets per hour (A 4 / single fold) Roller Speed 150 m / min Paper Gsm 47 gsm to 130 gsm Power 220 V, 1 ph, 250 W With Maintenance free AC Drive
