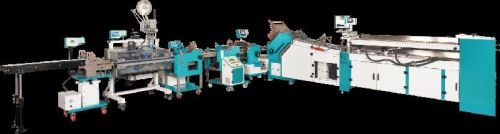

Outsert Machine


Outsert Machine

We are involved in catering to the global market with our high performance and durable Outsert Machine. For the fabrication of our Outsert Machine, we make use of high-grade parts & components along with advanced machines. Also, our quality inspectors thoroughly check each and every Outsert Machine against numerous quality parameters to ensure zero defects at buyer’s end. Furthermore, our Outsert Machine is reasonably priced.



PGV PF 1618

  • Folding Trays - 16 folding pockets + 15 deflectors
  • Max format - 457 X 800 mm
  • Min Format - 210 X 290 mm
  • Min folding - 25 mm
  • Roller speed - 150 m /min
  • Paper - 40 gsm to 130 gsm
  • Power - 400V, 3ph, 50hz, 3 KW


Taping Unit

  • Product Width - 35 mm to 200 mm
  • Product Length - 30 mm to 60 mm
  • Product Thickness - 1.5 mm to 8 mm
  • Product performance - 8000 / hr
  • Power - 220V, 1ph, 50hz, 2 KW
  • Air - Approx 6 bar


PGV BFC 415 / 615 Thick Fold

  • Folding Trays 4 / 6 folding pockets + 3 / 5 deflectors
  • Max format - 300 X 457 mm
  • Min format - 35 X 210 mm
  • Min folding - 25 mm
  • Min panel folding - 33 X 33mm
  • Max fold thickness - 5mm
  • Power - 220V, 1ph, 50hz, 1 KW


Variable Stacker with Adjustable Height

  • Max format - 254 X 125 mm
  • Min format - 35 X 25 mm
  • Min panel folding - 33 X 33mm
  • Max fold thickness - 5mm
  • Power - 220V, 1ph, 50hz, 0.5 KW
